Find the right product for your needs:
MR with screw connections
|
MR with flange connection
|
|
|---|---|---|
| Nominal connection diameter | DN 25, DN 32, DN 40, DN 50 | DN 65, DN 80, DN 100 |
| Drain connection | DN 50 | DN 50 |
| Water temperature | up to 90 °C | up to 90 °C |
| Nominal pressure | PN 16 | PN 16 |
| Filter finenesses in 50, 200 and 500µm are available on request |
|
|
Your advantages at a glance
- Quick mounting: Thanks to the pre-assembly of all components, installation is completed in just a few minutes. With the automatic version, the control unit is already mounted directly on the filter.
- Hot water resistance: All versions of the protective filters are hot water resistant up to 90 °C. They therefore also protect systems and devices that are operated with hot water.
- The MR backwash filter can be integrated into the Grünbeck myProduct app. This ensures that you are reminded of the manual backwash in good time.
- The interval scale reminds you to backwash in time.

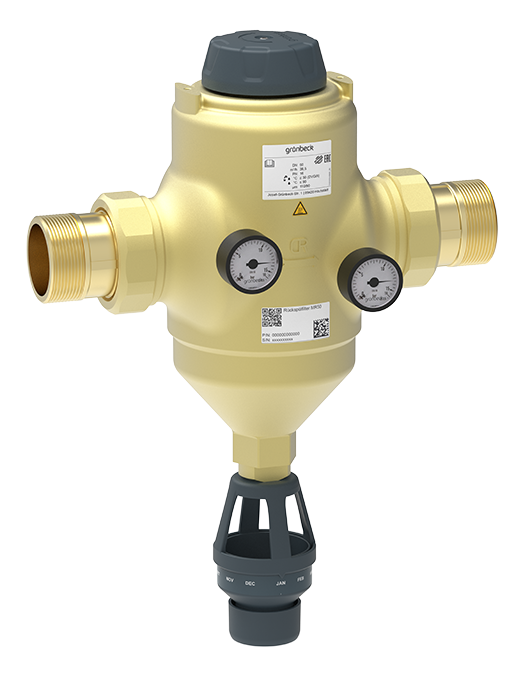

MR manual backwash filters with screw connections
The manually backwashable protective filters according to DIN EN 806-2 combine proven filter performance with state-of-the-art components for drinking water and industrial water treatment.
The high-quality filter element with a stainless steel mesh provides reliable protection against small particles and ensures the proper functioning of downstream systems. The free outlet according to DIN EN 1717 prevents backflow.
The integrated scraper brush enables additional mechanical cleaning of the filter element during backwashing. The solid brass housing around the filter element provides UV protection and prevents algae growth.
