Safe
Pressure reducer to maintain the value of the entire water system – reliably reduces water hammer as well as flow noises and controls the operating pressure. Complies with the requirements of DIN EN 806-2, chapter 16.1
Space-saving
Standard size for easy replacement of preceding or competitor's model
Easy
Quick installation and easy change of direction thanks to the patented rotary flange. Can be fastened by way of pre-assembled locking screws
Fitting
Drain connection on RX/RDX suitable for drain connection DN 50 with siphon according to DIN EN 1717 (order no. 188 875)
Optimised
New 100 µm filter cartridge to effectively protect the drinking water system. 5 µm and 50 µm filter cartridges for commercial/industrial use still available
Effective
Optimised backwash technology with impeller for effective filter cleaning

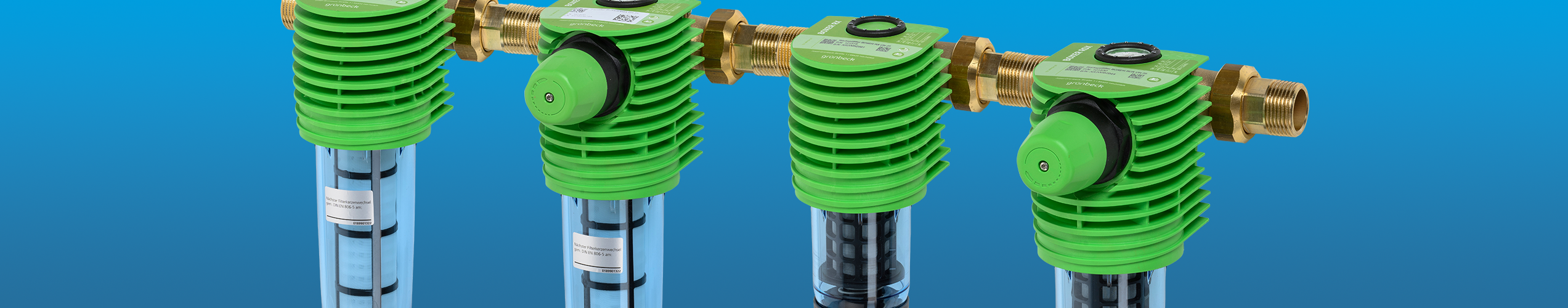

In order to be able to supply larger drinking water systems with a suitable filter, the BOXER-X series has been extended by the sizes 1 ½″ and 2″.
- For use in the commercial and industrial sector as well as in large buildings to protect the drinking water system according to DIN EN 806-2.
- Optionally available with pressure reducer in variants KDX and RDX for continuous adjustment of the max. admissible operating pressure (DIN EN 806-2).
- Reduces water hammer and flow noises.
- Pre-assembled, rotatable connection flange made of plastic including water meter screw connections for quick installation into the pipe in any flow direction and in only a few easy steps.
- Can be fastened by way of pre-assembled locking screws
- Including pressure gauge to conveniently read off the operating pressure.
- Integrated 12-digit date indicator as timely reminder of the next maintenance date for backwash/replacement of the filter element according to DIN EN 806-5 +
