The Grünbeck exaliQ:SC dosing system

Smart dosing technology

exaliQ:SC dosing system photo


Thanks to the green LED ring, the exaliQ system can communicate various status messages. In addition, your system continuously monitors the filling level of the mineral solution. and alerts you in good time when the filling level is low or an empty signal is pending.


The modern, intuitive operating panel features a backlight which changes in accordance to the respective device status. That way, you are always kept informed on the operating states of your exaliQ system. Thanks to distinct keys, you will be able to conveniently operate the system. The highest level of user-friendliness is guaranteed.


The tank of the exaliQ:KC system features a bayonet lock which is easy to install This allows  you to change the 3-litre mineral solution quickly and effortlessly in no time at all.


The new, consumption-optimised and stackable sizes of 15 and 60 litres allow for demand-based dosing - even in case of large buildings. The new canisters make handling the mineral solutions a lot easier. They can be stacked more easily than the preceding models and are sturdier, too.


The newly developed, smart control unit continuously records the dosing data over a period of an entire year and you can easily and conveniently read them out via USB flash drive. Getting to the interface is easy, too. You only need to open the hinged door at the equipment compartment.

Innovative & flexible

With the exaliQ dosing system, you will completely rediscover connectivity in your home. To this end, Grünbeck has developed a special communication interface. Via the smart, and at the same time convenient, iQ Comfort connection, you can connect your exaliQ with other Grünbeck systems such as the softliQ:SD and softliQ:MD water softeners. The exaliQ can then transmit system data which your softliQ system in turn passes on to Grünbeck’s myProduct app. You will be informed at any time - even when you are on the move.

Conversion from 15 litre canister to 60 litre canister possible thanks to 60 litre suction lance conversion kit. (Part no.: 117490)

Demand-based performance

For a clear pipe

When dosing Grünbeck products, mineral substances that are harmless to health are added to the water in a perfectly matched composition. These are mainly silicates and phosphates (silica).

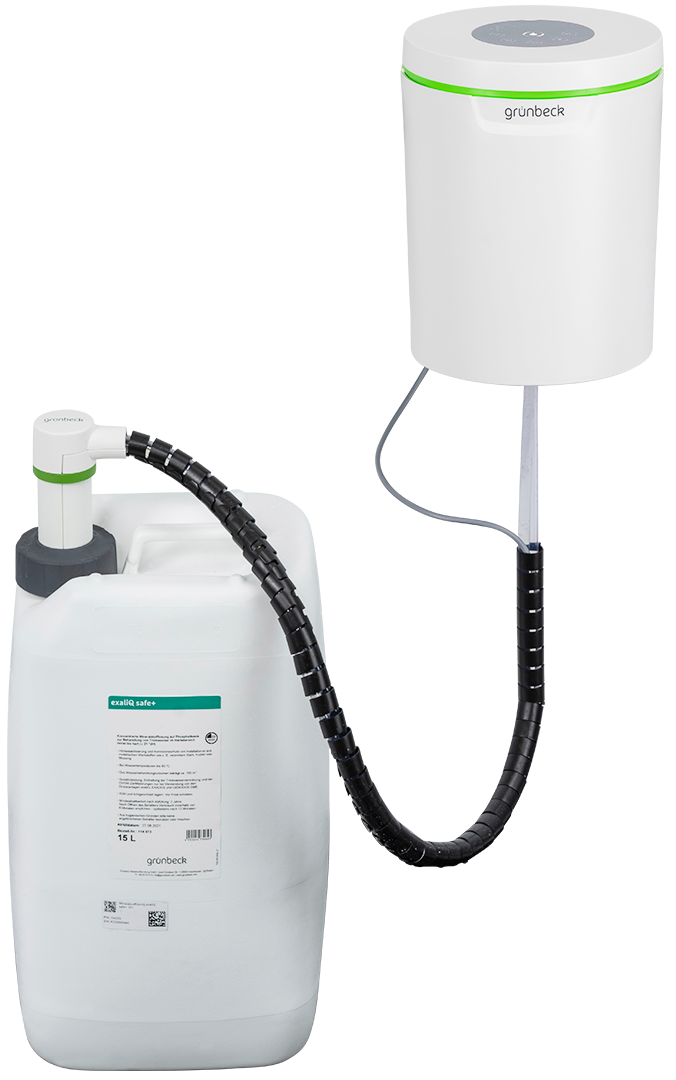

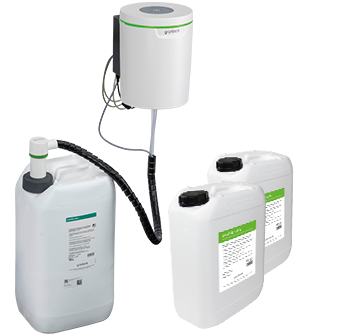

The exaliQ:SC series consists of systems with suction lances where the dosing tank is placed separately on the floor, right beside the system. The mineral solution is drawn from the canister via the suction lance and dosed into the pipe by means of the exaliQ pump unit. The Grünbeck consumption-optimised, stackable canisters come in sizes of 15 and 60 litres. Both systems, the system with suction lance as well as the compact system, are also available as variants for operation in combination with the softliQ water softeners. With these system, not only do you save money but valuable time as well Indeed, an additional adaptation of the pipe to install these combination devices is not required.  A connecting cable is already included in the scope of supply of the product variants exaliQ:KC6-e and exaliQ:SC6-e for softliQ:SD/MD softeners. This cable is used to establish the data exchange via the communication interface iQ Comfort.


The safety of your pipes and maintaining the value of your home This is what Grünbeck’s exaliQ dosing systems in combination with the exaliQ mineral solutions take care of. By dosing natural mineral substances (phosphates and silicates) into your drinking water, a protective layer is generated on the inside of the pipe. which effectively averts corrosion damage. In addition, it prevents the precipitation of scale. For the safety you deserve.

Discover more about dosing


Technical specifications

exaliQ:SC dosing system photo
6 10 20 30
Nominal connection diameter [R] 1" 1¼" 1½" 2"
Max. operating range [m³ / h] 6 10 20 30
Dosing tank [l] 15 15 15 15
Installation length without screw connections [mm] 140 140 190 240
Installation length with screw connections [mm] 222 231 312 356
Order no. 117405 117410 117415 117420
