Always good circulating water

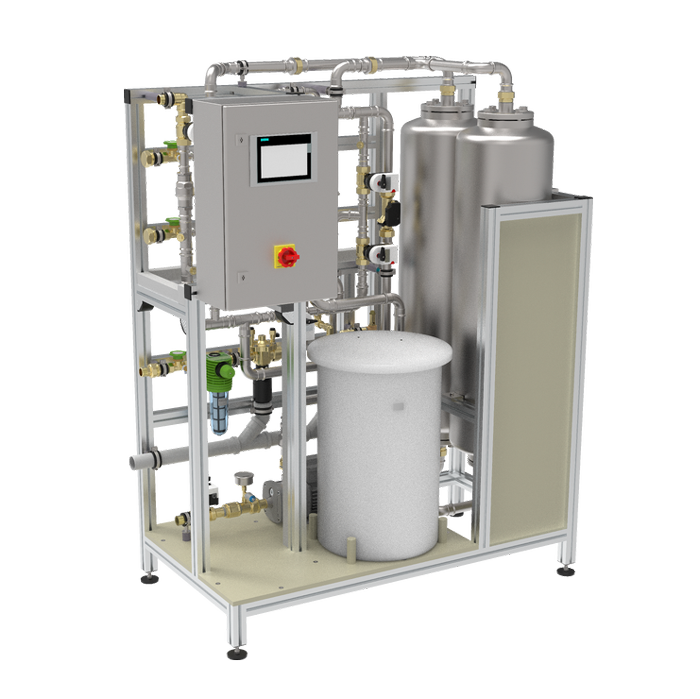

Partial flow filter varioliQ for cooling and heating systems

  • Local and district heating networks
  • biogas plants
  • Combined heat and power plants
  • Large buildings
  • Data centers
  • Industrial areas (e.g. injection molding)
  • and much more.

Circulating water treatment without interrupting operation

The varioliQ is used to improve the water quality in closed heating and cooling systems. Thanks to simple integration in the partial flow and independent system operation, perfect water quality is restored without draining or time-consuming flushing processes. The varioliQ is therefore the ideal partner for treating circulating water during operation.



Back to excellent water quality

The water quality in closed systems can deteriorate due to filling with hard water, external water ingress or incorrect make-up. To restore the optimum quality, the circulation water is filtered and softened by the varioliQ partial flow filter. This removes all dirt particles and limescale-forming substances from the circulation water.



Simple, efficient and low-maintenance

Thanks to the fully automatic control system, independent system operation is achieved with the lowest possible operating costs: backwashing and regeneration mean that the filter material does not need to be replaced; the integrated bypass pump enables simple and hydraulically independent connection to the system and the unique eco mode enables particularly energy-saving operation. This reduces operating, personnel and maintenance costs to a minimum.



Protection of the pipes

The optional pre-assembled dosing system can also be used to raise the pH value and protect the closed system from corrosion. In addition, dissolved iron is oxidized and can be filtered out with the included filter module.



Flexible use

A mobile version with four castors enables easy and safe transportation. The brake with dead man's control prevents the system from rolling away as soon as the lever on the handle is released.



Areas of application

For the treatment of circulation water in closed systems such as

  • heating circuits
  • Cooling circuits
  • Local and district heating networks

Technical data

Partial flow filter
varioliQ:LB3000 varioliQ:LB4500
Nominal connection diameter [DN] 25 AG 32 AG
Nominal flow rate [m³/h] 3.0 4.5
Water/ambient temperature max. [°C] 90/40 90/40
Operating pressure raw water min./max. [bar] 3/8 3/8
Operating pressure circuit min./max. [bar] 2/14 2/14
Nominal softening capacity [m3 x °dH] (mol) 140 (25) 140 (25)
Regeneration salt supply [kg] 50 50
Bestell-Nr. 707000070000 707000090000
Order no. mobile version 707000080000 707000100000
