Smart circulation water treatment

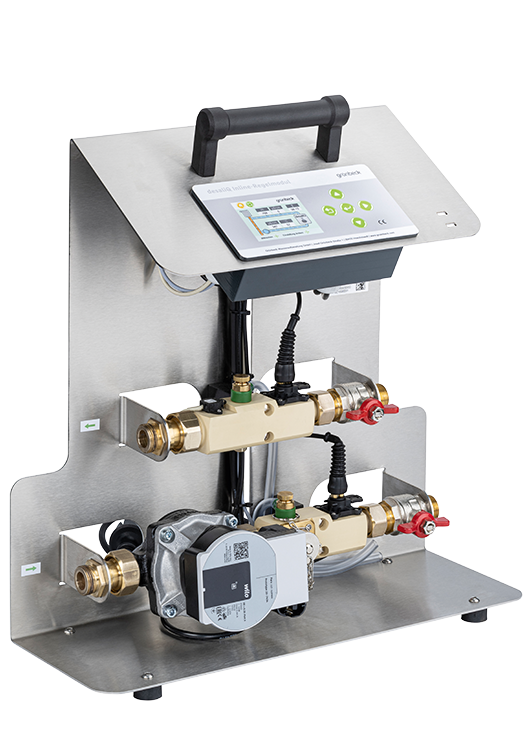

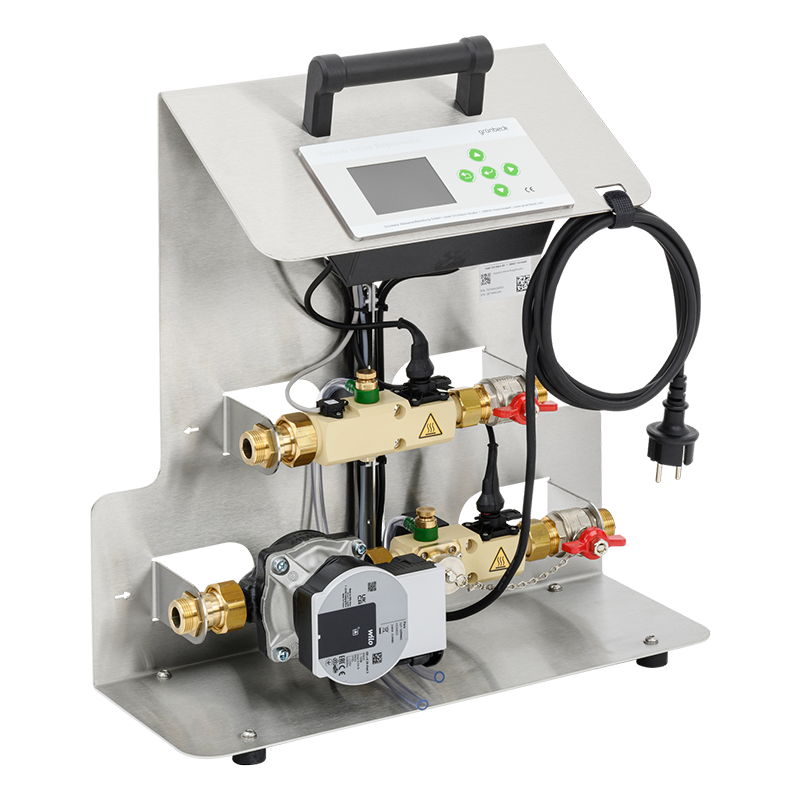

The Grünbeck desaliQ Inline control module


Smart control unit and clear user interface for intuitive operation


Circulation capacity of up to 900 l/h for effective heating water treatment


Versatile use for any type of application thanks to a water temperature resistance of up to 80 °C


Two conductivity measurements for double safety: Control of the pure water quality as well as the conductivity of the heating water


Flow meter to monitor the volume flow and the total amount of treated water


Protection of the individual components and a long service life of the device thanks to a housing made of sturdy, stainless steel

Circulation water treatment made easy

Circuit treatment is necessary in the case of poor heating water quality or when renovating an older system. In order to produce optimum water quality in the available heating system, Grünbeck provides the installer with a perfect tool: With the desaliQ inline control module, circulation water treatment is carried out effectively and reliably.

Minimum weight with maximum performance

The ergonomic carrying handle, and the low total weight of less than 10 kg, make it easy to transport the desaliQ inline control module to the place of use. Despite minimal weight, Grünbeck focuses on maximum performance: Thanks to the desaliQ inline control module, systems with a water temperature of up to 80°C can be treated during operation. The high circulation rate also ensures that the treatment time is reduced to a minimum.

Smart control unit and sensors for intuitive use

The two conductivity sensors provide double safety for your system: They permanently monitor the quality of the pure water and the heating water conductivity. In conjunction with the integrated water meter, you as the user are thus able to check the progress of the treatment at any time.

The heart of the desaliQ inline control module is the smart control unit. The clear user interface enables the specialist installer to select the desired type of treatment intuitively and easily in various operating modes. All important parameters and current measuring values are clearly shown on a large colour display. Thanks to the robust operating buttons in the control unit, the device meets all the requirements for reliable use on a construction site.

Technical specifications

desaliQ Inline control module
Nominal connection diameter [DN] 3/4"
Power supply [V] 230
Nominal pressure [PN] 6
Nominal flow [m³/h] 0.9
Weight [kg] 9.3
Max. water temperature [°C] 80
Order no. 707000030000
