Reliable heating protection

The Grünbeck filling group thermaliQ:SB


Installation in horizontal or vertical installation scenario thanks to the 360° rotatable system separator


Pre-assembled assembly groups for easy installation

Quick as a flash

Rotating flange of the system separator cartridge enables simple and quick cartridge replacement


Prevents contaminated heating water from flowing back into the drinking water system

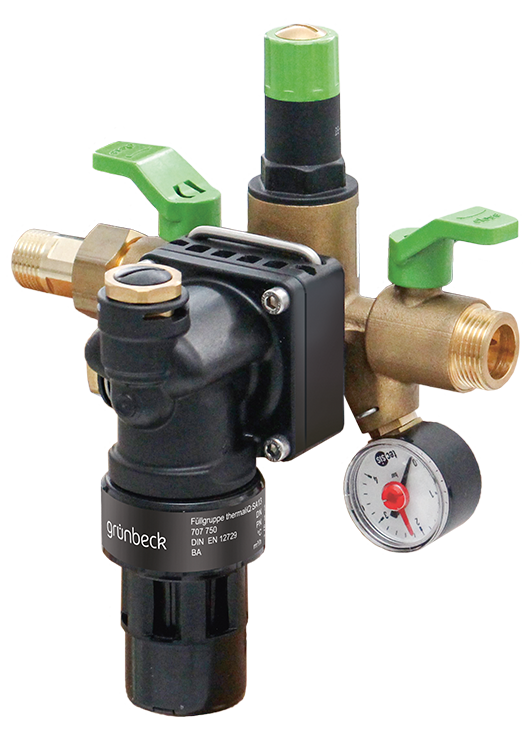

Filling group thermaliQ:SB13

The easiest handling with maximum safety!

The filling group thermaliQ:SB13 is designed to secure the drinking water as per DIN EN 1717. The directly installed system separator BA ensures this safety. It prevents the possibly polluted water from flowing back from the heating system. A pressure reducer with integrated pressure gauge allows the variable adjustment of the filling pressure. Shut-off valves on the inlet and outlet side ensure safety on all sides. Thanks to the system separator unit already installed, which can be rotated by 360°, handling is easier than ever before. The filling group can be mounted in any installation situation – both horizontal as well as vertical. Furthermore, the filling group comes completely pre-assembled. This not only makes handling easier, but also saves you considerable time during installation. A dirt strainer on the inlet side complements the thermaliQ:SB13.


  • Shut-off valve
  • Dirt trap
  • Pressure gauge
  • Shut-off valve
  • System separator
  • Pressure reducer

Technical specifications

ThermaliQ:SB13 filling group
Nominal connection width [DN] 15
Operating pressure [bar] 10
Nominal flow at 1.5 bar [m³/h] 1.3
Max. water temperature [°C] 30
Installation length with screw connections [mm] 210
Installation length without screw connections [mm] 150
Order no. 707750
