Reliable heating protection

The Grünbeck filling section thermaliQ:FB


Installation in horizontal or vertical installation scenario thanks to the 360° rotatable system separator


Pre-assembled assembly groups for easy installation

Quick as a flash

Rotating flange of the system separator cartridge enables simple and quick cartridge replacement


Prevents contaminated heating water from flowing back into the drinking water system


Safe monitoring of the water quality with the conductivity measuring cell


desaliQ:HB2 filling cartridge already included in the scope of delivery


Connection of all Grünbeck mixed bed cartridges possible


Plastic cylinder protects the desaliQ:HB2 filling cartridge

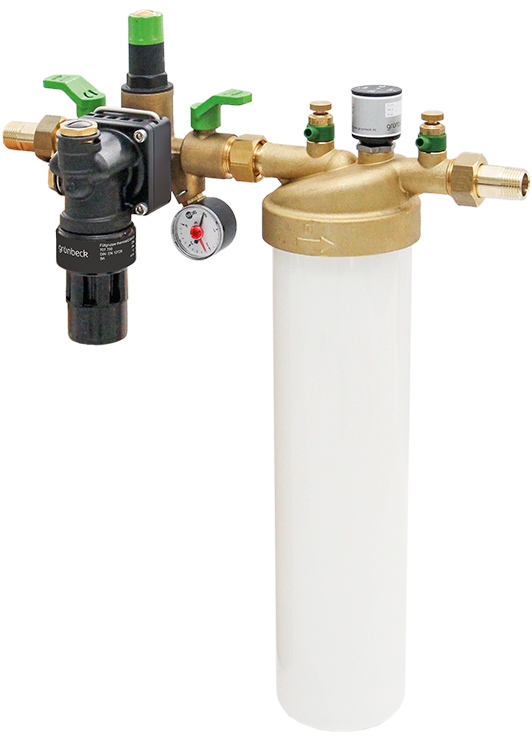

Filling section thermaliQ:FB2

Two powerful groups that make up an overall system

The filling section thermaliQ:FB2 is the complete unit for conveniently filling the heating system or for the make-up water feed of closed heating systems. After mounting the boiler and piping for the heating system, the thermaliQ filling section provides you with the basis for the initial filling with optimally treated fully demineralised water. Filling the heating system is more convenient than ever for you. As the filling section actually combines three elements that stand for the generation of perfect fully demineralised water: The filling group thermaliQ:SB13 and the treatment group thermaliQ:HB2 which already includes the filling cartridge desaliQ:HB2

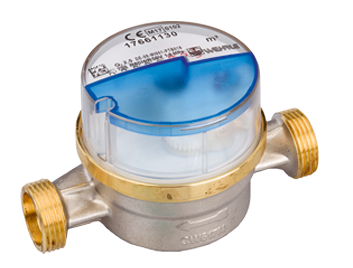

In order to document the amount of water flowing through, we recommend installing an additional water meter (Order no.: 702 845).

Technical specifications

Treatment group thermaliQ:FB2
Nominal connection diameter [DN] 15
Operating pressure [bar] 6
Nominal flow (with cartridge) [m³/h] 0.2
Nominal flow (with adapter) [m³/h] (depending on filling cartridge or mixed bed cartridge used) 1.3
max. Water temperature [°C] 30
Installation length with screw connections [mm] 375
Installation length without screw connections [mm] 315
Order no. 707760
