intuitive
An interface has been created that sets new standards. Clearly structured yet familiar, all functions for commissioning and operating the system can be found where you expect them. Further information and tips provide answers before questions can even arise.
intelligent
softliQ always knows exactly when you need how much water and in what quality. With the help of artificial intelligence, a consumption control system has been developed that adapts to your needs faster than ever before: iQ mode. As a positive side effect, the consumption of salt is reduced to a minimum. This not only protects the environment, but also your wallet. Do you need more water for a short time? No problem. Boost mode also covers unplanned peaks in consumption.
smart
Connectivity often distinguishes a good product from a great one. Integrating the softliQ:SE and softliQ:ME water softeners into the cloud is easier, faster and more intuitive than ever before. At the same time, the navigation in the myProduct app has been adapted to the interface of the system. Data and the operation of your system can be accessed and controlled worldwide in real time. Integration takes place via your in-house WLAN or alternatively via the LAN connection.
resource-saving
Everything in the green zone. Thanks to adaptive system disinfection, the disinfection intervals are automatically adjusted to the water temperature. Disinfection is only carried out as often as is actually necessary. This saves resources, is good for the environment and still guarantees perfect hygiene.
informative

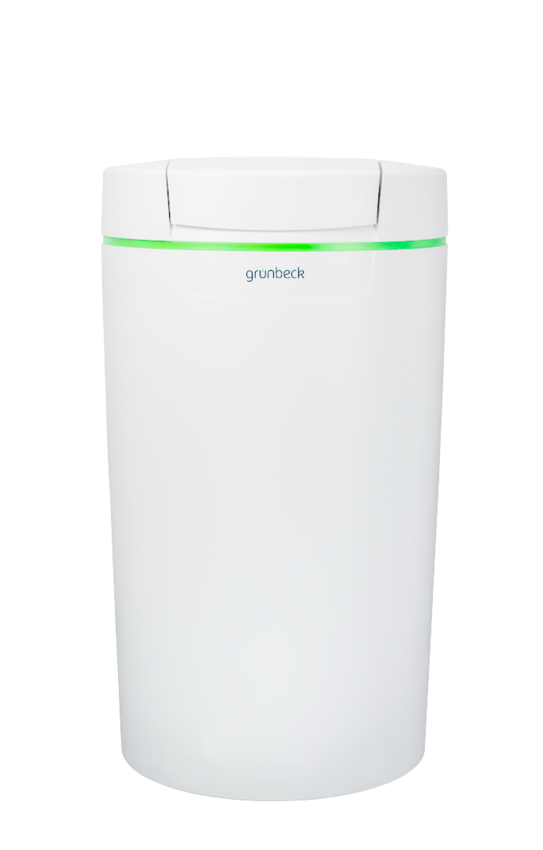

The green LED illuminated ring communicates various operating statuses of the system and alerts you to messages. It also serves to illuminate the inside of the salt container. An additional audio signal reinforces the communication function.
forward-looking
The internal infrared light sensor checks the fill level of the regeneration salt with every regeneration. You can view the current status of your salt supply in the app
Grünbeck myProduct. You will be informed of a salt shortage in good time by push message or email.
safe
A leakage sensor offers you enhanced safety. It monitors the location of the system and detects potential water leaks. Thanks to the app connection, you are also informed immediately on the move. For the security you deserve. An integrated temperature sensor provides you with information on the water and room temperature. If the environment cools down unusually below 4 °C, you will receive a message on the display and via the Grünbeck myProduct app. A small feature for your extra safety.
comfortable
If your softliQ system is integrated into the Grünbeck cloud, it can be optimally supported in future via a remote service if required. At the same time, potential malfunctions are detected and prevented at an early stage thanks to AI-supported remote diagnostics.
innovative
softliQ stands for connectivity across the board, because Grünbeck has created communication interfaces for you. Not only do you have the option of integrating your water softener into your home network via WLAN or LAN, but you can also connect it to other Grünbeck devices. The specially developed, innovative iQ-Comfort interface on the back of the system is used for this purpose. Your Grünbeck devices now communicate with each other. You receive the system information worldwide in real time via the app. We have created an additional interface at the rear of your system so that you can connect the regeneration water feed pump even more easily and conveniently than before.
Find the right softliQ for your needs:
softliQ:ME28
|
softliQ:ME32
|
softliQ:ME38
|
|
|---|---|---|---|
| Recommended use | Up to 20 persons | Up to 20 persons | Up to 30 persons |
| Salt supply | 95 kg | 95 kg | 95 kg |
| Connection technology | ¾", 1", 1¼" cliQlock | ¾", 1", 1¼" cliQlock | 1¼" |
| Soft-close function |
|
|
|
| Touchscreen |
|
|
|
| WLAN |
|
|
|
| Mobile system control with Grünbeck myProduct app |
|
|
|
| LED illuminated ring |
|
|
|
| Salt level indicator |
|
|
|
| Leakage-Guard |
|
|
|
| Communication interfaces 2 x iQ-Comfort |
|
|
|
| LAN |
|
|
|
| Regeneration water feed pump connection |
|
|
|
| Duct connection included in scope of delivery |
|
|
|
| Hose insulation included in the scope of delivery |
|
|
|
| Information on water temperature and adaptive adjustment of system disinfection |
|
|
|
| Parallel operation with 2-pillar softener |
|
|
|
| Electric blending device |
|
|
|
| Suitable for extra large flow rate |
|
softliQ:ME - top class performance winner.
The softliQ:ME series impresses with maximum efficiency and maximum performance - even with high water requirements. Thanks to the two exchangers, it guarantees permanently high flow rates that are unparalleled in its performance class. The softliQ:ME28 is ideal for up to 15 people, the softliQ:ME32 supplies up to 20 people and the softliQ:ME38 even up to 30 people with soft water. No matter which size you choose: You benefit from first-class convenience and enjoy the advantages of softened water at all times.
|
softliQ:ME
|
28 | 32 | 38 |
|---|---|---|---|
| Nominal flow rate at 1.0 bar pressure loss KV value (DIN EN 14743) [m³/h] | 2.8 | 3.2 | 3.8 |
| Nominal flow rate at 1.0 bar pressure loss, from raw water hardness 20 °dH to soft water hardness 8 °dH [m³/h] | 3.6 | 4.0 | 5.6 |
| Recommended use by Grünbeck from ... to persons | 1 - 15 | 1 - 20 | 1 - 30 |
| Dimensions (W x H x D) [mm] | 525 x 912 x 580 | 525 x 912 x 580 | 525 x 912 x 580 |
| Height with lid open [mm] | 1,290 | 1,290 | 1,290 |
| Order no. | 187000010000 | 187000020000 | 187000030000 |
