Find the right product for your needs:
MXA with screw connections
|
MXA with flange connection
|
|
|---|---|---|
| Application range | up to nominal diameter DN 50 | from nominal diameter DN 65 |
| Nominal connection diameter | from R 1" to 2" | from DN 65 to DN 100 |
| Drain connection | DN 50 | DN 50 |
| Water temperature | up to 90 °C | up to 90 °C |
| Nominal pressure | PN 16 bar | PN 16 bar |
| Standard filter element 100 µm; 50 µm, 200 µm and 500 µm available |
|
|
| DVGW-certified |
|
|

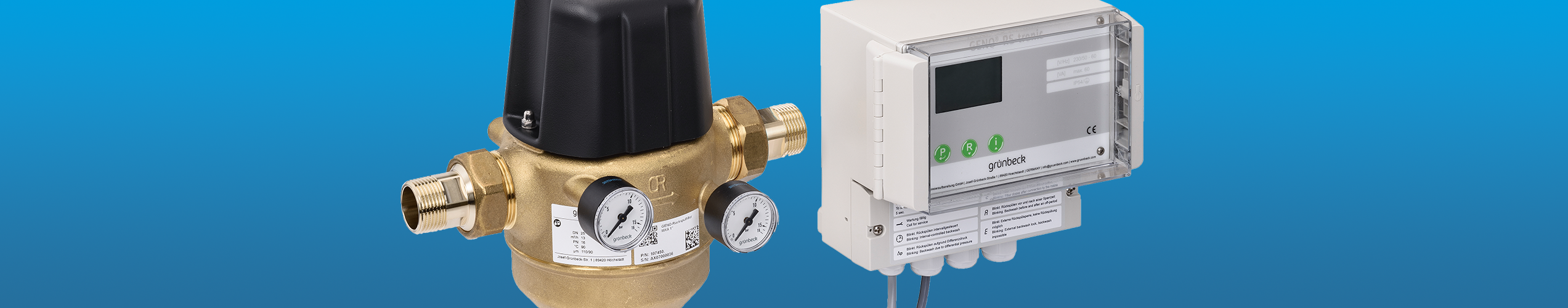

GENO-backwash filter MXA with screw connections
The GENO backwash filter MXA with screw connections (from nominal diameter DN 65) takes over the drinking water filtration according to DIN EN 806-2 in households, commerce and industry. All parts of the filter that come into contact with the medium are made of brass or high-quality technical plastic. In its fully automatic version, it is equipped with an integrated drive unit and freely programmable control unit GENO-RS-tronic. The differential pressure and time-regulated control unit triggers the backwash via an external voltage-free contact or via an operating button on the GENO-RS-tronic. The GENO backwash filter MXA can be individually programmed for maintenance and service. A standard filter insert with 100 µm fineness is provided, filter elements with 50, 200 and 500 µm are available.
GENO-backwash filter MXA with flange connection
The GENO backwash filter MXA with flange connection (from nominal diameter DN 65) takes over the drinking water filtration according to DIN EN 806-2 in households, commerce and industry. All parts of the filter that come into contact with the medium are made of brass or high-quality technical plastic. In its fully automatic version, it is equipped with an integrated drive unit and freely programmable control unit GENO-RS-tronic. The differential pressure and time-regulated control unit triggers the backwash via an external voltage-free contact or via an operating button on the GENO-RS-tronic. The GENO backwash filter MXA can be individually programmed for maintenance and service. A standard filter insert with 100 µm fineness is provided, filter elements with 50, 200 and 500 µm are available.
