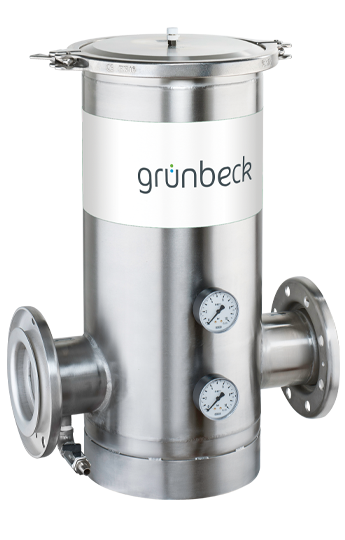

The GENO fine filter FME

Best protection for your water system

The GENO fine filter FME (DN 50, 65, 80, 100) protects water systems in commerce and industry with its solid 1.4404 stainless steel design. The protective filter contains several filter cartridges that are easy to change. The basic equipment includes filter cartridges with 100 µm, 500 µm that can also be retrofitted. The user-friendly cover closure makes it possible to change the filter cartridges quickly, which means only short interruptions to operation. The pressure remains under check with the raw and clean water pressure gauge.


The unfiltered drinking water flows into the filter from the inlet side and then passes through the filter cartridges to the pure water outlet. Thus, foreign particles of > 100 µm in size, subject to the filter element, are retained. Depending on their size and weight, the foreign particles either stick to the filter cartridge or fall straight down where they accumulate at the lowest point of the filter. Due to the growing load of the filter cartridges, the differential pressure between the raw water inlet and the pure water outlet increases. If the differential pressure of 0.8 bar at the flow rate of the filter is exceeded, the filter elements must be replaced. The user-friendly locking system of the cover ensures the trouble-free and quick replacement of the filter cartridge without any tools.


  • Stainless steel version
  • DN 50, 65, 80, 100
  • Max. water temperature 30 °C.
  • Nominal pressure PN 10 bar
  • Basic equipment filter cartridges 100 μm
  • 50 μm, 100 μm and 500 μm can be retrofitted
  • Hot water-resistant version up to 90° C at 6 bar
