Flexible
Installation in horizontal or vertical installation scenario thanks to the 360° rotatable system separator
Practical
Pre-assembled assembly groups for easy installation
Quick as a flash
Rotating flange of the system separator cartridge enables simple and quick cartridge replacement
Safe
Prevents contaminated heating water from flowing back into the drinking water system
Smart
Safe monitoring of the water quality with the conductivity measuring cell
convenient
desaliQ:HB2 filling cartridge already included in the scope of delivery
Compatible
Connection of all Grünbeck mixed bed cartridges possible
Safe
Plastic cylinder protects the desaliQ:HB2 filling cartridge

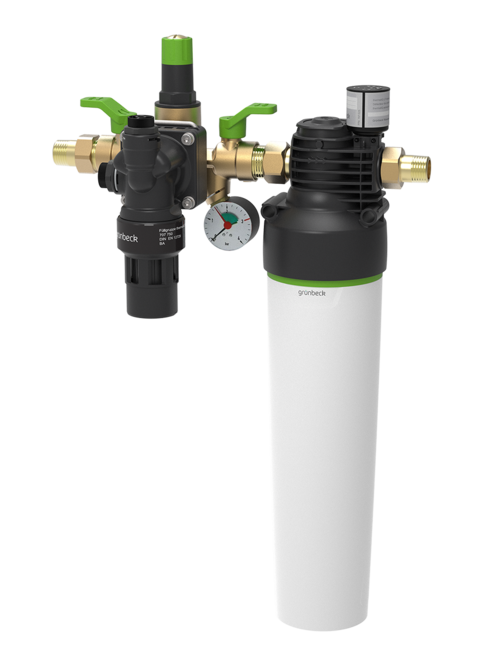

Filling section thermaliQ:FC2
Two strong groups that form a unified system
The thermaliQ:FC2 filling station is a complete unit designed for convenient initial filling or topping off of closed heating systems. Once the boiler has been installed and the heating system piping completed, the thermaliQ filling station provides the foundation for the initial filling with optimally treated deionized water. Filling your heating system has never been easier. This is because the filling station combines three key components essential for producing the best deionized water: the thermaliQ:SB13 filling unit and the thermaliQ:HC2 treatment unit, which already includes the thermaliQ:HC2 filling cartridge.
thermaliQ:FC2 treatment unit:
|
|
|---|---|
| Nominal diameter | DN 15 |
| Connection size | G ½" |
| Nominal duct diameter | ≥ DN 40 |
| Rated pressure | PN 10 |
| Pressure reducer adjustment range | 0.5 - 4 bar |
| Flow rate at 1.5 bar | 0.2 m³/h |
| Capacity at < 10 μS/cm | 25 |
| Capacity at < 50 μS/cm | 40 |
| Fluid temperature | 5 - 30 °C |
| Ambient temperature | 5 - 40 °C |
| Order No. | 707000210000 |
