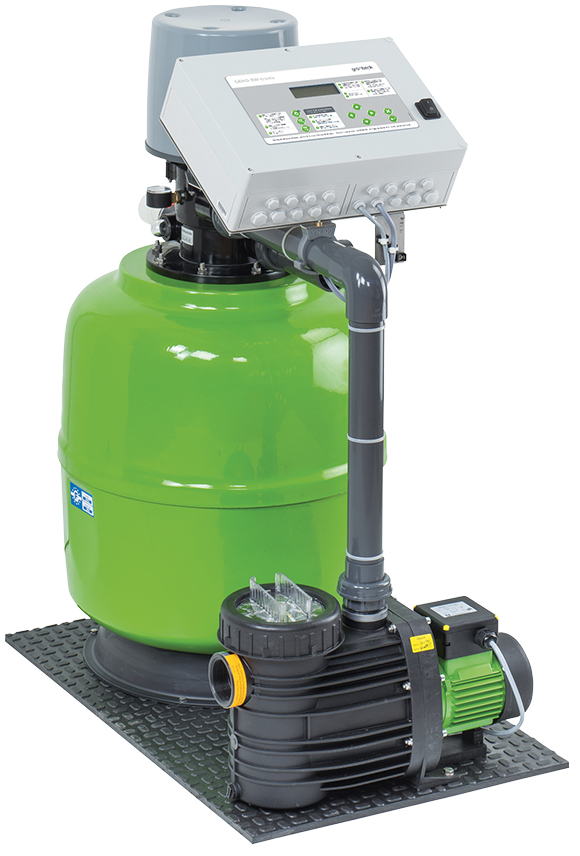

GENO-mat F 500 – Filter systems for a pool volume up to 35 m³
The GENO-mat F 500 filter systems are ideal for swimming pools up to 35 m³ pool capacity. The GENO-mat F 500 is available in manual and automatic versions. All filter systems are equipped with a GRP filter tank and circulation pump. In manual mode, the filter flushing is triggered by hand and monitored. The automatic variant, with the BW-tronic control unit, regulates the filter operating times and flushing times via a time program. The variant with the BWH-W control unit regulates the filter running times via a timer.
Manual filter system in a compact design
- GENO-mat F 500 H, AC
- GENO-mat F 500 H, 3P
Semi-automatic filter systems in a compact design with heat exchanger
- GENO-mat F 500 HK, AC*
- GENO-mat F 500 HK, 3P
Fully automatic filter system in a compact design
- GENO-mat F 500 A, AC
- GENO-mat F 500 A, 3P
Fully automatic filter systems in a compact design with heat exchanger
- GENO-mat F 500 AK, AC
- GENO-mat F 500 AK, 3P
New: Also available as an Eco automatic filter system
With our Eco series, we achieve energy-efficient operation by means of optimally matched components.
The variable-speed circulation pump (3 stages) makes it easy to adapt to local conditions.
Fully automatic filter system in a compact design
- GENO-mat F 500 A, AC Eco
Fully automatic filter systems in a compact design with heat exchanger
- GENO-mat F 500 AK, AC Eco
GENO-mat F 500
|
GENO-mat F 500 (Eco series)
|
|
|---|---|---|
| Pump capacity [m³ / h at mWC] | 8.5 / 8 | ≤ 24 / 8 |
| Max. filter capacity [m³/h] | 6 | 6 |
| Connection to pump | 2″ fem. thread | 2″ fem. thread |
| Connection to pool/drain [DN] | 40 | 40 |
| Power input [W] | 480 (3P) / 580 (AC) | 80 - 1,400 (AC) |
| Drain connection required [DN] | 100 (by client) | ≥ 100 (by client) |
