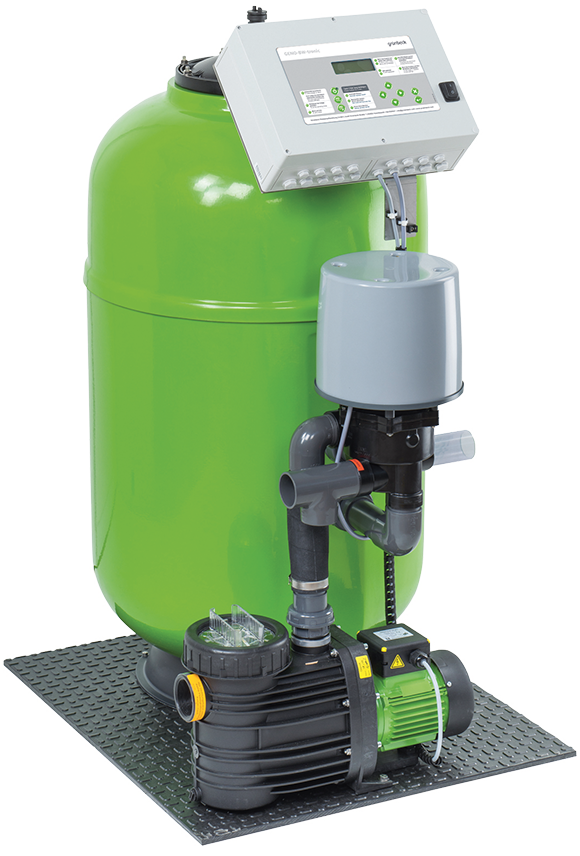

GENO-mat F 600 – Filter systems for a pool volume up to 70 m³
The GENO-mat F 600 model series offers filter systems for swimming pools with a pool volume of up to 70 m³. The GENO-mat F 600 is available in manual and automatic versions. All filter systems are equipped with a GRP filter tank and circulation pump. In manual mode, the filter flushing is triggered by hand and monitored. The automatic variant, with the BW-tronic control unit, regulates the filter operating times and flushing times via a time program. The variant with the BWH-W control unit regulates the filter running times via a timer.
Manual filter system in a compact design
Semi-automatic filter systems in a compact design with heat exchanger
Fully automatic filter system in a compact design
Fully automatic filter systems in a compact design with heat exchanger
New: Also available as an Eco automatic filter system
With our Eco series, we achieve energy-efficient operation by means of optimally matched components.
The variable-speed circulation pump (3 stages) makes it easy to adapt to local conditions.
Fully automatic filter system in a compact design
Fully automatic filter systems in a compact design with heat exchanger
![]()
GENO-mat F 600
|
![]()
GENO-mat F 600 (Eco series)
|
|
---|---|---|
Pump capacity [m³ / h at mWC] | 14 / 8 | ≤ 24 / 8 |
Max. filter capacity [m³/h] | 12 | 12 |
Connection to pump | 2″ fem. thread | 2″ fem. thread |
Connection to pool/drain [DN] | 40 | 40 |
Power input [W] | 900 (3P)/970 (AC) | 80 - 1,400 (AC) |
Drain connection required [DN] | 100 (by client) | ≥ 100 (by client) |
