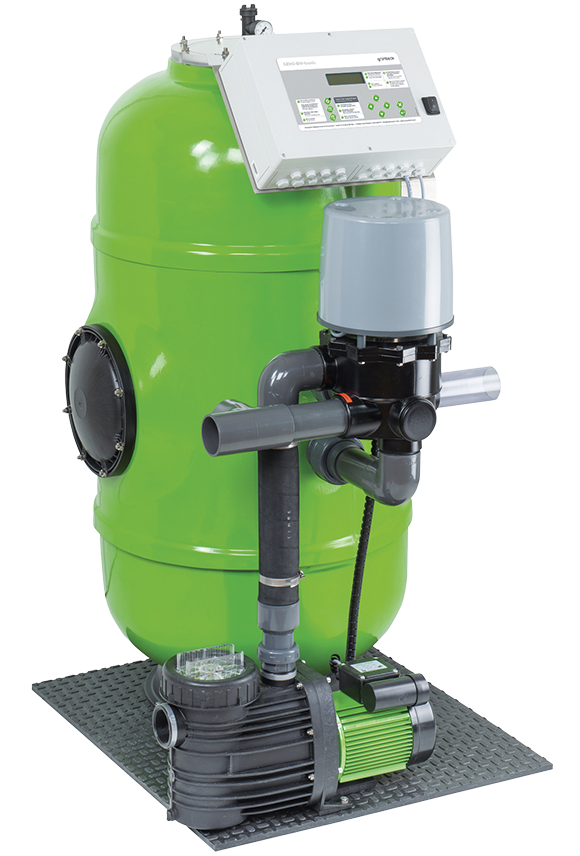

GENO-mat F 610 – Filter systems for a pool volume up to 90 m³
The GENO-mat F 610 are filter systems for swimming pools with a pool volume of up to 90 m³. The models are available in manual or fully automatic versions. All filter systems are equipped with a GRP filter tank and circulation pump. In manual mode, the filter flushing is triggered by hand and monitored. The automatic variant, with the GENO-BW-tronic control unit, regulates the filter operating times and flushing times via a time program.
New: Also available as an Eco automatic filter system
With our Eco series, we achieve energy-efficient operation by means of optimally matched components.
The variable-speed circulation pump (3 stages) makes it easy to adapt to local conditions.
Fully automatic filter system in a compact design
- GENO-mat F 610 A, AC Eco
GENO-mat® F 610
|
GENO-mat F 610 (Eco series)
|
|
|---|---|---|
| Pump capacity [m³ / h at mWC] | 20/8 | ≤ 34/8 |
| Max. filter capacity [m³/h] | 15 | 15 |
| Connection to the pump | 2″ fem. thread | 65 |
| Connection to the pool/drain [DN] | 50 | 50 |
| Power input [W] | 1,320 (3P)/1,370 (AC) | 90 - 1,800 (AC) |
| Drain connection required [DN] | 100 (by client) | ≥ 100 (by client) |
