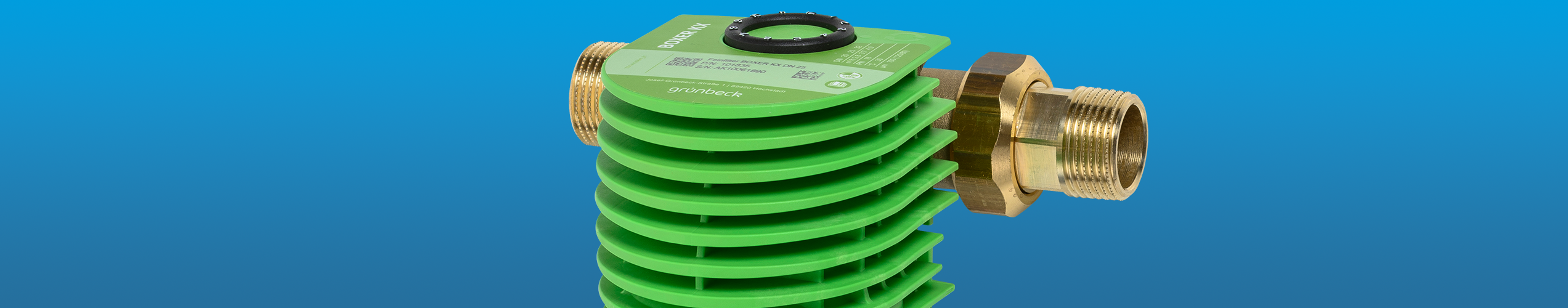

BOXER KX fine filter to protect the domestic water system
The unfiltered drinking water flows into the filter from the inlet side and then from the outside in through the filter cartridge and to the pure water outlet. Thus, foreign particles with a size > 100 µm are retained. Depending on their size and weight, the foreign particles either stick to the filter cartridge, or they fall straight down into the filter cylinder. According to DIN EN 806-2, the filter cartridge must be replaced every 6 months at the latest.
By means of the flow-optimised pressure reducer of the BOXER KDX fine filter, which is designed according to DIN EN 1567, the outlet pressure on the withdrawal side can, in addition, be set to 1 – 6 bar (factory setting: 4 bar).
Characteristics
- Connection flange incl. water meter screw connections (made of dezincification-resistant brass) with seals and stainless steel screws
- Supporting fabric made of high-grade plastic for long-term use
- Maintenance ring for setting the next maintenance date (filter change)
- Transparent blue filter cylinder that can be tightened by hand
- Replaceable filter cartridge made of polyester fabric (filter fineness 100 µm in the standard version; 80 µm, 50 µm, 20 µm and 5 µm retrofitting possible)
- All water contacting parts comply with the German Drinking Water Ordinance. Test regulations: KTW, DVGW W 270, DIN 50930-6
- All materials are recyclable
BOXER KX
|
3/4" | 1" | 1 1/4" |
|---|---|---|---|
| Flow capacity BOXER KX, Δp = 0.2 bar [m³/h] | 2.8 | 3.7 | 4.0 |
| Flow capacity BOXER KX, Δp = 0.5 bar [m³/h] | 4.5 | 6.0 | 6.3 |
| Installation length without screw connections [mm] | 100 | 100 | 100 |
| Installation length with screw connections [mm] | 185 | 182 | 191 |
| Overall height BOXER KX [mm] | 260 | 260 | 260 |
| Order no. BOXER KX | 101830 | 101835 | 101840 |
