Experience purity in terms of design and performance
Hygiene starts with the design. With the perfectly designed pureliQ filter series, we set new standards in water filtration. Intuitive handling and innovative functions make it your filter champion for excellent water purity. Give yourself the gift of a better quality of life and maintain the value of your water installations and appliances thanks to pure water.
Grünbeck’s pureliQ filters: New standards for the pure enjoyment of water.
Solid substances such as rust particles or sand grains may cause severe corrosion damage in pipes and fittings. The pureliQ filters make sure that it won’t come to that in the first place. They are the essential first step of water treatment and effectively protect water installations in household, trade and industry.
The perfect solution for your needs.
Grünbeck’s filter solutions perfectly work in all fields of application. For each and every product is being developed with due diligence and tailored to prevailing needs - designed for today's as well as for future requirements. Through the new development of the pureliQ filter series, we have the perfect solution for your needs. And another feature is incorporated: The good feeling that with Grünbeck you will always enjoy high quality, long life cycles and reliable maintenance and service.

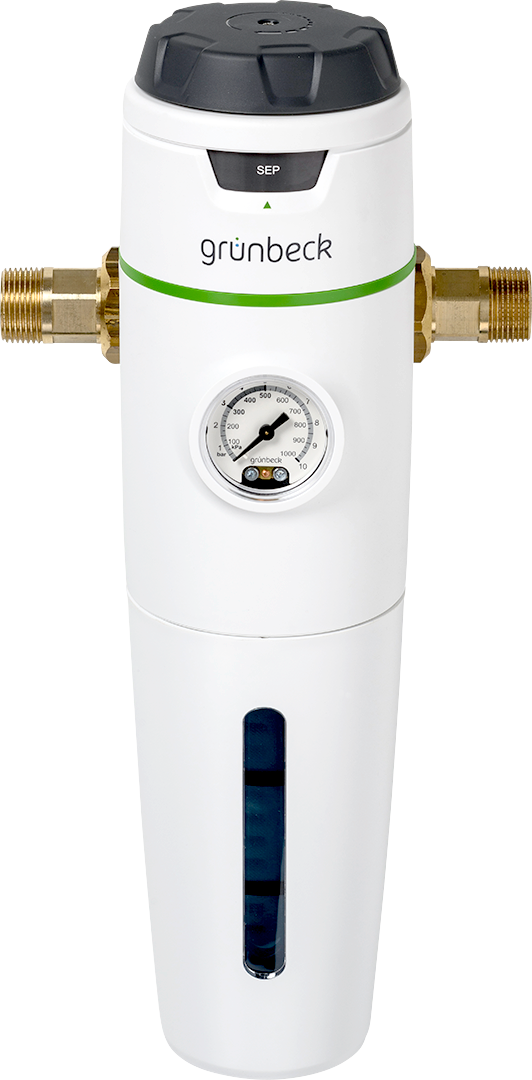

Fine filters pureliQ:K and pureliQ:KD
The fine filters pureliQ:K and pureliQ:KD are designed for the filtration of drinking and industrial water. Solid substances, such as rust flakes or sand grains, may cause serious corrosion damage to pipes and fittings. The fine filters pureliQ:K and pureliQ:KD ensure that it does not come to that. It represents the important first stage of water treatment and effectively protects water installations in households, trade and industry from malfunctions and corrosion damage. The unfiltered drinking water flows into the filter from the inlet side and then from the outside in through the filter element and to the pure water outlet. Depending on the filter element, foreign particles the size of > 5 µm, 20 µm, 50 µm, 100 µm (DVGW version) are thus retained. Our new fine filters pureliQ:K and pureliQ:KD ensure reliable filter capacity for a long period of time by simply replacing the filter cartridge. The fine filters pureliQ:K and pureliQ:KD are designed according to the specifications of DIN EN 13443-1 and intended for installation into the drinking water system according to DIN EN 806-2 (installation immediately downstream of the water meter).
Find the right pureliQ for your needs:
pureliQ:K
|
pureliQ:KD
|
|
---|---|---|
Pre-assembled components | ||
Click-type connection flange | ||
Ergonomically shaped pressure reducer handwheel | — | |
Inspection window for protection from UV light | ||
Smooth organic design | ||
Connection diamater | ¾", 1", 1 ¼" | ¾", 1", 1 ¼" |
Nominal pressure | PN16 | PN16 |
Water and ambient temperature | 30°C/40°C | 30°C/40°C |
Filter fineness | 100μm | 100μm |
Setting standards In detail
The closed design of the pureliQ filter series perfectly protects the filter element from UV light and algae growth. Thanks to the seamless shape of the housing, the surface stays pristine longer and is easy to clean, if needed Hygienic design for ideal water filtration. Made in Germany.
Installation
As all components are pre-assembled, the installation, by a specialist installer, is completed within a few minutes. The pureliQ’s rotatable, patented click-type connection flange enables it to be easily installed, using virtually no tools, in all kinds of mounting scenarios.
pureliQ:K/KD
|
20 | 25 | 32 |
---|---|---|---|
Connection diamater | 3/4" | 1" | 1 1/4" |
Flow capacity pureliQ:K, Δp = 0.2 bar [m³/h] | 2.8 | 3.7 | 4.0 |
Flow capacity pureliQ:K, Δp = 0.5 bar [m³/h] | 4.5 | 6.0 | 6.3 |
Flow capacity pureliQ:KD, according to DIN EN 1567 [m³/h] | 2.3 | 3.6 | 5.8 |
Installation length without screw connections [mm] | 100 | 100 | 100 |
Installation length with screw connections [mm] | 185 | 182 | 191 |
Overall height pureliQ:K [mm] | 335 | 335 | 335 |
Overall height pureliQ:KD [mm] | 335 | 335 | 335 |
Order no. pureliQ:K | 101220 | 101225 | 101230 |
Order no. pureliQ:KD | 101270 | 101275 | 101290 |
