Powerful
- Deactivation of 99.99 % of all germs in the water
- suitable for high SSK254 values up to 3.2 m-1
- high flow rate
- very long service life of the lamps (16,000 hours)
Ecological
- environmentally friendly technology
- Chemical-free disinfection
- Process with UV light
Safe
- integrated monitoring of the UV lamp
- according to DIN 19294-1
- DVGW-certified
Easy To Use
- Plug & Play
- quick and easy installation
Flexible
- individual flow rate depending on the application
- simple in design
- permeate-resistant version available for process water
Chemical-free disinfection

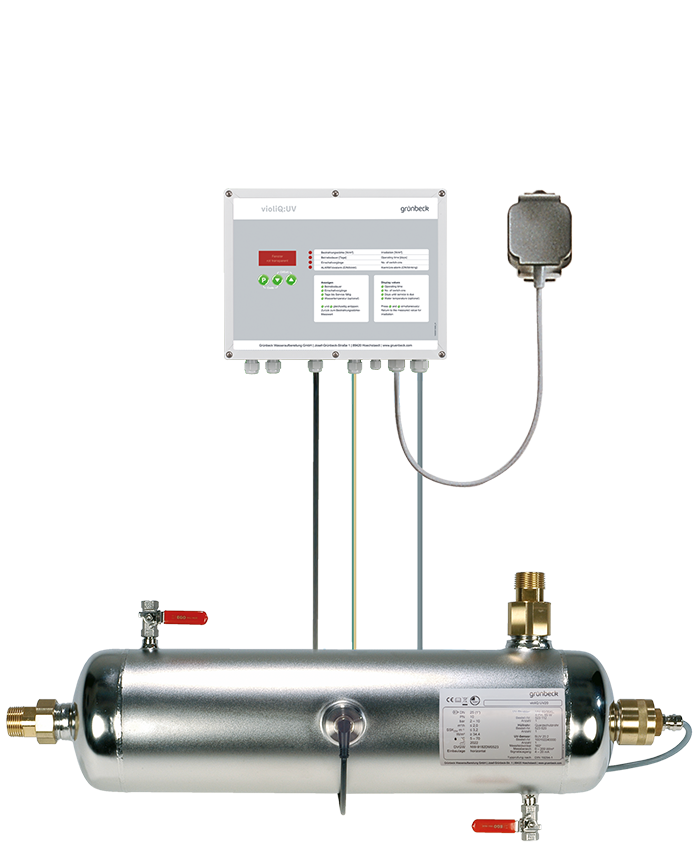

The violiQ:UV disinfection system
The UV disinfection systems violiQ:UV are designed for the disinfection of cold drinking water. The UV disinfection systems violiQ:UV are installed downstream from the water treatment systems. The room irradiation required to kill bacteria and viruses is at least 400 J/m². At this room irradiation, a reduction rate of 99.99 % is achieved.
Drinking water version
All drinking water versions of violiQ:UV are DVGW-tested, have integrated monitoring of the UV lamp and a safety solenoid valve and thus meet the highest safety standards. The end product after treatment is microbiologically flawless water. Thanks to the high permissible SSK value, the violiQ:UV is also ideal for disinfecting well water in private water supplies.
Industrial version
For the use of violiQ:UV in process water, e.g. in the food and beverage industry, we offer permeate-resistant industrial versions. The end product after treatment is microbiologically flawless process water.
Disinfection system violiQ:UV
|
20 | 66 | 85 |
|---|---|---|---|
| Nominal connection diameter [R] | 1" | 1½" | 2" |
| Installation position | horizontal, outlet top, self-venting | horizontal, outlet top, self-venting | horizontal, outlet top, self-venting |
| max. flow rate [m³ / h] | 2.0 | 6.6 | 8.5 |
| Inlet water temperature [°C] | 5 - 70 | 5 - 70 | 5 - 70 |
| Ambient temperature [°C] | 5 - 40 | 5 - 40 | 5 - 40 |
| Electrical connected load [VA] | 75 | 145 | 215 |
| Total length with screw connection [mm] | 795 | 1185 | 1430 |
| Order no. | 523000010000 | 523000030000 | 523000040000 |
